Amman , Jordan
Ministry Of Interior Conference Hall
The Hall is located on the top floor space of the existing building. The project space is newly built and it has a separate entrance on the ground floor. Since this new interior office floor is totally separated from the main building, it has its own HVAC and domestic hot water systems.
Smart energy meters were installed to monitor and measure the subsystems. Plumbing fixtures were also selected as high-efficient low-flow consumed type.
Energy efficiency measures resulted in an energy use savings of 22.3%. Approximately 9% of energy savings is coming from photovoltaic panels.
Installed new HVAC systems which contained no CFC-based refrigerants, which thereby reduced the building impacts on the ozone and global warming.
The Conference Hall has been designed to emphasize natural daylight and a visual connection to outdoor environments have been proven to increase occupant well-being and comfort.
Project info
- Construction phase
- New construction
- Building type
- Non-residential building
- Detailed building type
- Public Assembly: Social/Meeting
- Net floor area
- 391 m2
- Land plot size
- 1472 m2
- Stories
- 1 story
- Construction type
- Concrete
- Original construction year of the building
- Unknown
- Project contact
- Maysoon Al-Khuraissat
- Contact email address
- maysoon@adaaconsultants.com
Project team
- Developer(s)/owner(s)
- Ministry Of Interior, Jordan
- Architect(s)
- Ruqn Al Handasa Consulting Engineers
- Energy efficiency consultant(s)
- adaa, Sustainable Development Consultants
Building Envelope
External walls
- Description of construction
- Conference hall wall: 20mm momentum plaster + 150mm hollow block + 50mm insulation + 100mm hollow block + 20mm momentum plaster
- U-Value
- 0.479 W/(m²*K)
Roof
- Roof type
- Flat roof
- Description of construction
- 50mm madet mailan + 50mm insulation + 320mm total forced concrete + 240mm polystyrene blocks in forced concrete + 20mm momentum plaster.
- U-Value
- 0.27 W/(m²*K)
Openings and windows
- Glazing type
- Double glazed
- U-Value glass
- 2.1 W/(m²*K)
Technical Building Systems
Space cooling system
- Primary space cooling system
- Packaged VAV with PFP Boxes
Space heating system
- Description
- Packaged VAV with PFP Boxes
Water heater system
- Primary water heater system
- Dedicated electric heater (dedicated = just hot water generation)
- Efficiency
- 80
Lighting system
- Primary lighting system
- LED (Light emitting diode lamps)
Shading devices
- Type of shading system installed

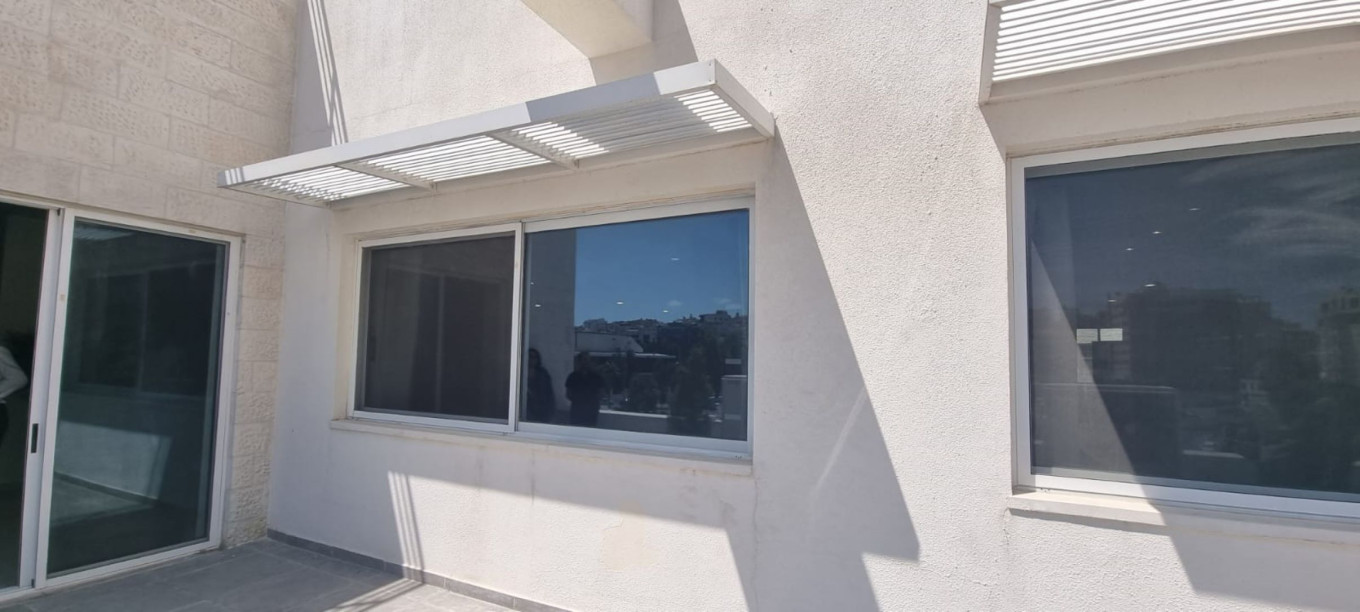

- Static (fix) shading systems as part of the building architecture (e.g. Maschrabiyya, porch roofs, pergolas)
Photovoltaics
- Capacity
- 2.07 kWp
- Description
- Approximately 9% energy saving is coming from the photovoltaic panels.
